Mercedes-Benz Sprinter L3 Wheelchair Van = Taxi Van + Handicap Van

b fit icon Extremely large wheelchair van that can safely accommodate up to ten able-bodied passengers or six wheelchair passengers. You can serve a wide range of passengers with the B-FiT Mercedes-Benz Sprinter L3 minibus. This wheelchair van can be used as a taxi van, wheelchair taxi or handicap van by a taxi or transport company. If a wheelchair space is not used, other passengers can sit on the comfortable tip-and-turn seats that are included. In most countries, a bus driving licence is required to drive this bus. The name of the Mercedes-Benz Sprinter L3 is confusing, because competitors call this the L4 size.

Mercedes-Benz Sprinter L3 Wheelchair Accessible Vehicle

The B-FiT is a ready-made floor system specifically designed for the Mercedes-Benz Sprinter L3.

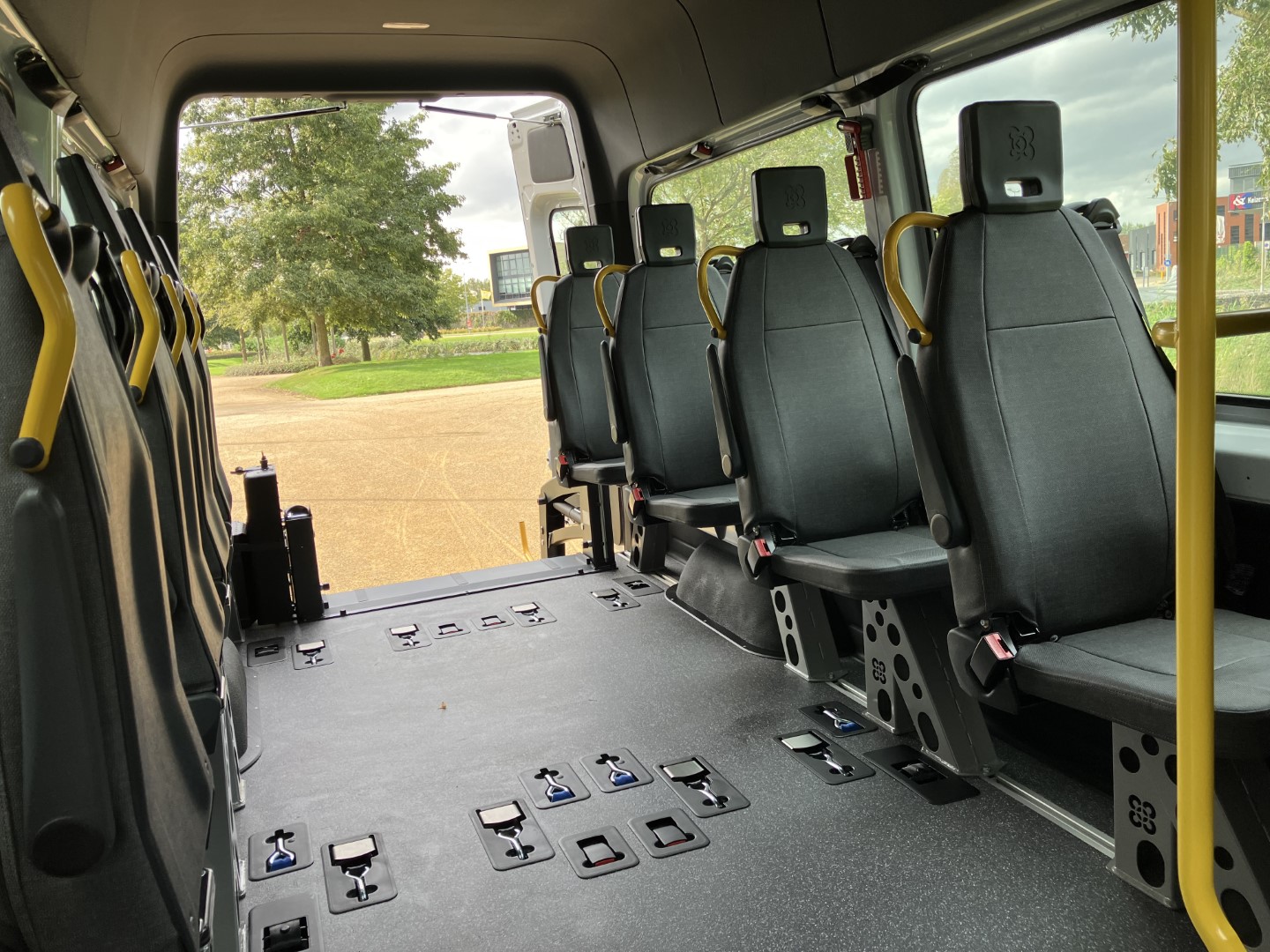

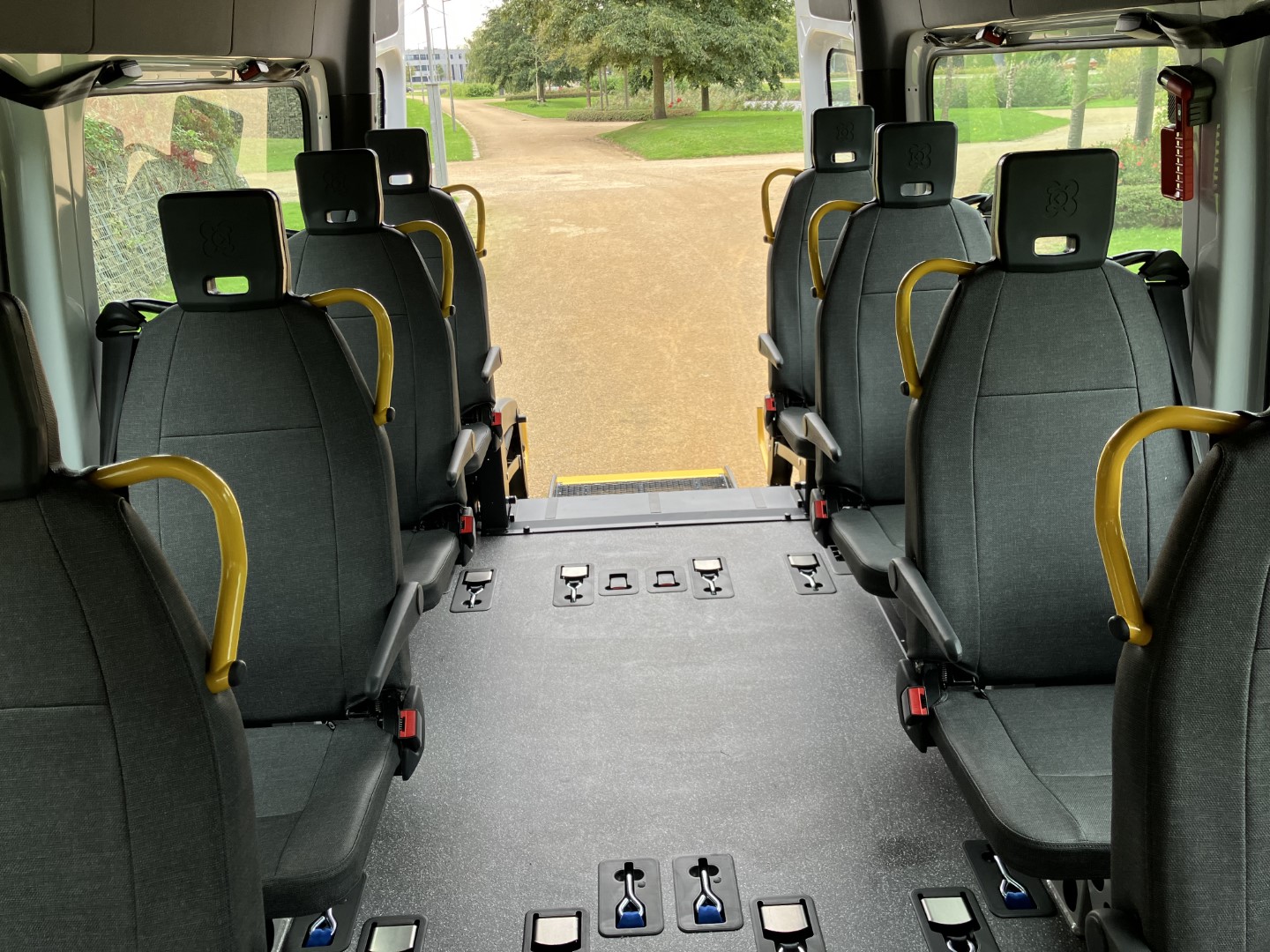

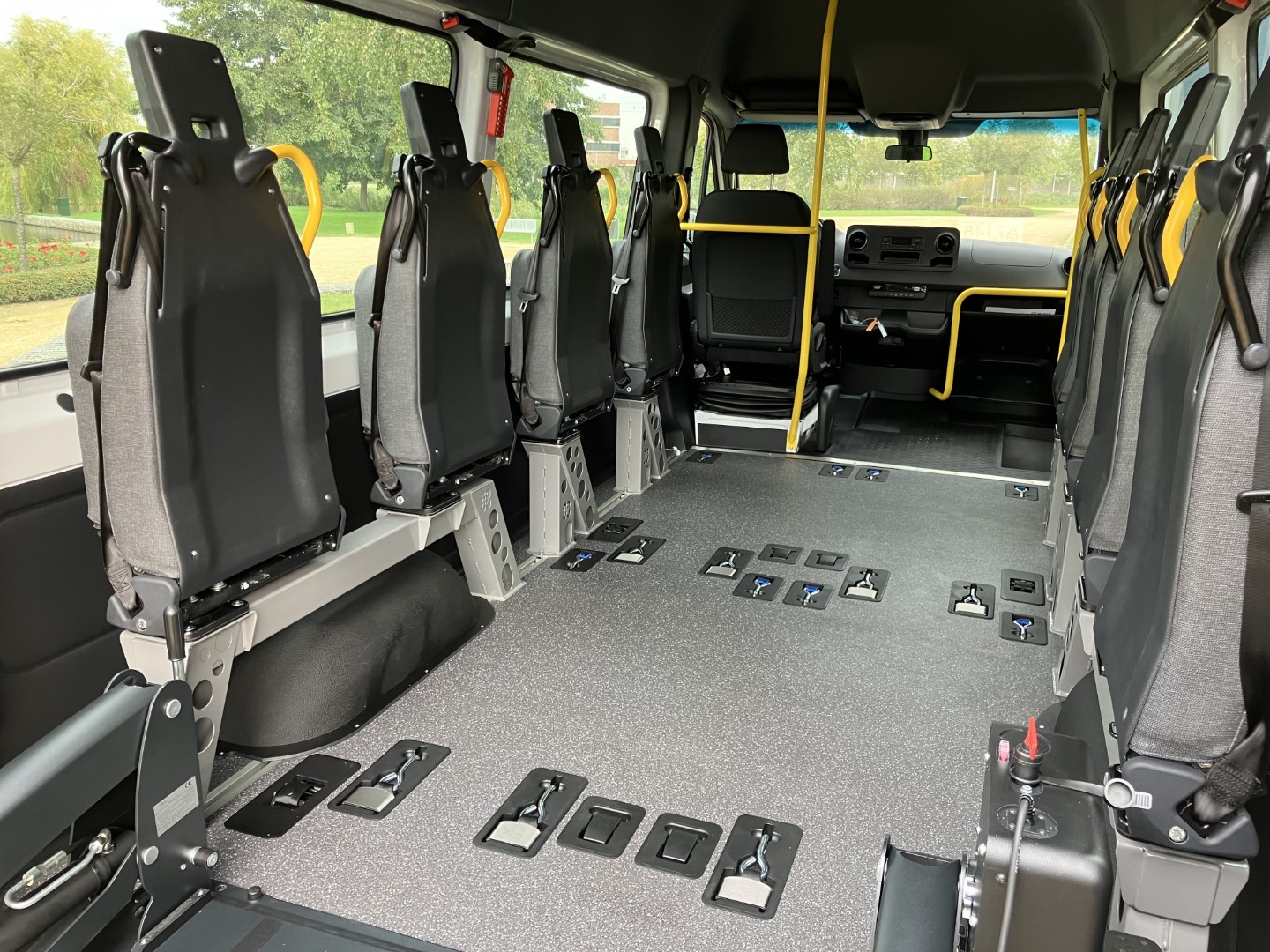

The wheelchair systems are fully integrated into the B-FiT floor. This creates a completely flat, obstacle-free floor, significantly reducing the risk of tripping – a common issue with some competing systems where belts lie on top of the floor.

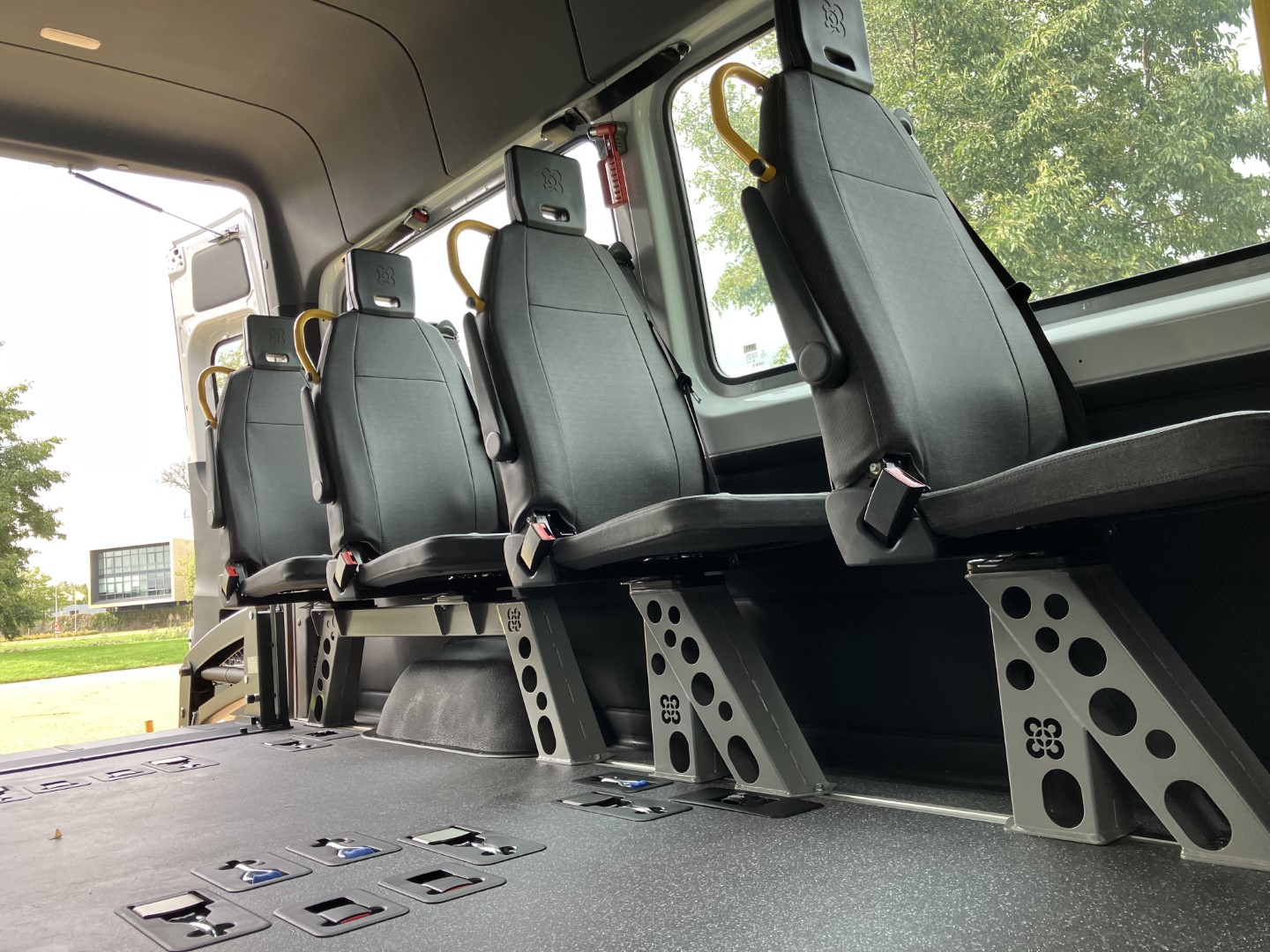

The system can be expanded with multiple FiT5 swivel seats, offering a highly flexible layout for transporting both wheelchair users and able-bodied passengers.

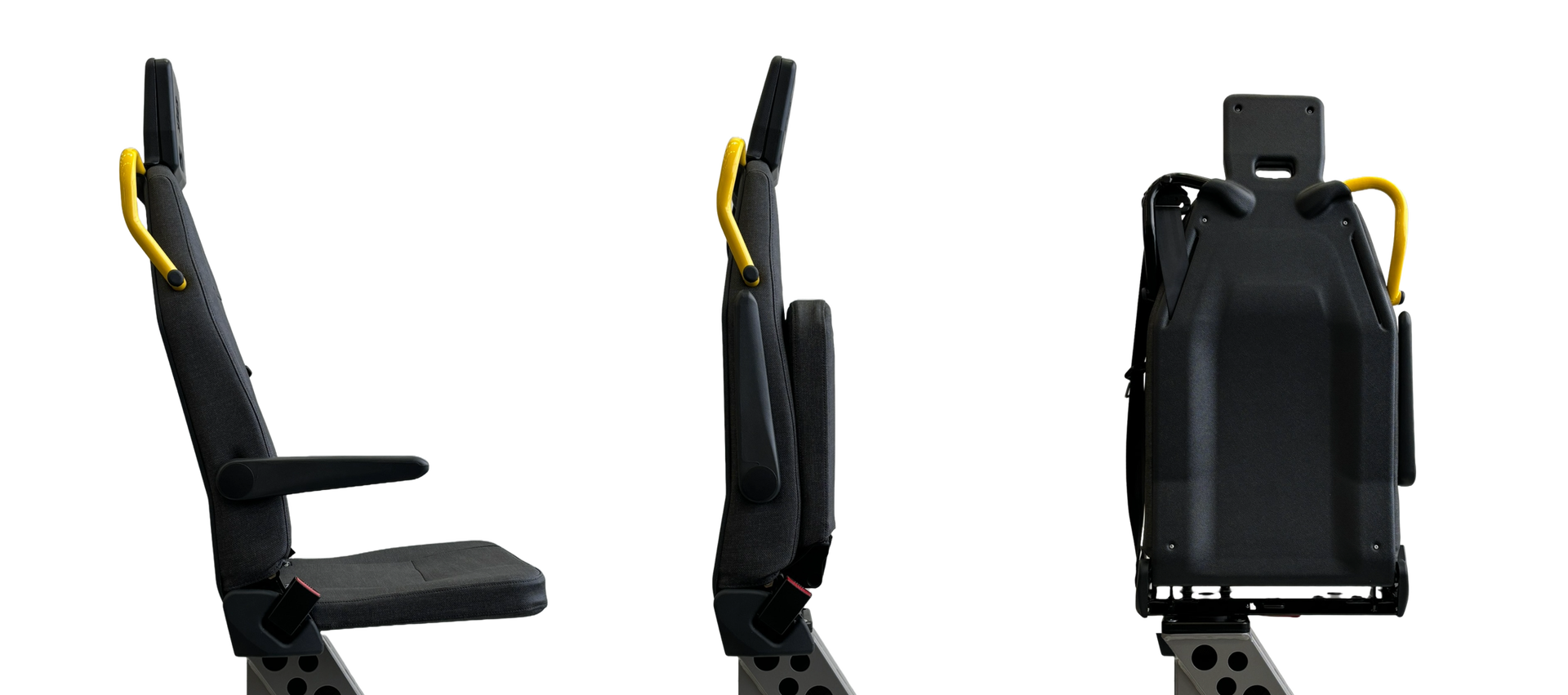

Maintain full flexibility in your Sprinter thanks to the FiT5 folding seat – the lightest M1-certified seat on the market, designed by B-Style.

folding seat tripple

Lay out for the B-FiT Mercedes-Benz Sprinter L3

10. mercedes benz sprinter l3 9 stoelen 6 rolstoelplaatsen met schuifdeur rolstoelen geplaatst iso aanzicht

Discover the benefits of the B-FiT Floor System

Lowered entry in the front (LHD)

Built-in quickly

No welding required

Step-by-step installation manual

Available for 2 lengths (L2 and L3)

Mercedes-Benz VanPartner

Exterior wheelchair lift of your choosing

Great visibilty, seats are folded below the windows

All test reports available

Safe passenger transport

If the belts that are integrated in the B-FiT floor are not used, the hooks are stored in the floor. This creates a completely flat floor on which passengers are less likely to stumble in the passenger bus. It goes without saying that all the belt systems conform to the latest European safety requirements and have been extensively tested in order to qualify for this.

The same applies to the folding seats and the frames on which they stand, for which tensile tests have been conducted in-house to ensure safety. The results are verified by the RDW, the Dutch National Road Administration. The test results are valid for the entire European Union.

Safety+ Safe and easy (Optional)

For extra safety, the B-FiT system can be expanded with the Safety+ option. The Safety+ option comes with a screen that shows whether the swivel seats are in use and whether passengers are using their seat belts. This also applies to the wheelchair user. The screen is placed on the driver's side, where they can see at a glance if all passengers are wearing their seat belts and if it is safe to drive. If the wheelchair passenger releases the seatbelt, the driver will be notified.

Touchscreen control – Safe and easy correct wheelchair position

Boarding and alighting

Wheelchair passengers enter the Mercedes-Benz Sprinter L3 wheelchair van via a wheelchair lift attached to the B-FiT floor at the rear of the Sprinter. You decide for yourself what type of lift you want to install. B-Style does not make its own lifts, but we can order them for you. For the other passengers, there are two options for boarding. When a Sprinter without a sliding door is chosen, B-Style delivers a lowered entry for the passenger door, the B-Open. This is a lowered step for easier entry, which eliminates the front passenger seat. In addition to easy entry, the advantage of this is that there is room for ten swivel seats. The other option is a Sprinter with sliding door, which has space for nine additional seats. In that case, passengers naturally enter through the sliding door.

Personalizing your Sprinter Wheelchair Van

You decide how many swivel seats you want, up to a maximum of ten. The seats can be placed next to the windows or in the middle. The number of wheelchair spaces is four or six. As mentioned above, a lowered entry is possible, as well as a wheelchair lift of your choosing.

Wheelchair van conversion

Converting a Mercedes-Benz Sprinter to a wheelchair van couldn't be easier. The floor is delivered to the conversion company ready for use, so there is no cutting or welding involved in conversion of the van for handicap transportation. To eliminate friction, a plastic layer and adhesive are supplied for use between the van and the B-FiT floor. For extra strength, the floor is screwed to the bottom at a number of points. The seats can be placed on the rails.

Mercedes-Benz VanPartner

B-Style is a Mercedes-Benz VanPartner. This means that Mercedes-Benz recognizes the quality of B-Style and recognizes us as an official conversion partner.
